With recent developments in EV infrastructure and eBus fleets it has become increasingly possible that these systems will need to be powered from the Light Rail Transit traction power substations (TPSS). We expand our "Rail" offering to accommodate these systems as well. The same needs are present when connecting high voltage DC to induction motors. The inherent problems revolve around Common mode EMI and RFI propagation so the components used in eBus technology will be very similar to those used in LRT. You must place emphasis on isolation techniques for human safety, very accurate current and voltage readings, safely breaking the DC current path, and EMC/RFI shielding and mitigating components for clean DC power.

Best-In-Class Railway Components for Power and Signal TechnologyLight Rail Vehicle Icon

Dynamic Rail works with suppliers of rugged components that stand up to railway standards for Shock and Vibration, EMC, Extended Temperature, Water, Dust and High Humidity. Dynamic has been supporting the North American Railway and Transportation markets for several years. We specialize in providing ultra-rugged electrical hardware for Rolling Stock, Wayside and TPSS applications. Our product experts also keep up to date on compliance standards, environmental concerns, and testing requirements for the transportation market. When specifying safety critical components we consider ourselves solution providers that know the ins and outs of the manufacturers we represent. At Dynamic Rail we understand the challenges your specification brings and we know that piece parts are sometimes not the answer on their own. Our engineers will work diligently to find a field proven railway solution to your problem.

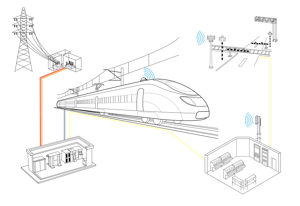

Onboard the Train

Ultra rugged components that have been Railway proven and meet passenger railway standards. Meeting standards for resistance to harsh conditions; water, ice, snow, fire, metal dust and impacts. Standards such IEC/EN60310, IEC/EN45545 HL3, PD4

Train-to-Ground

Communications with main control room and signaling systems

Traction Power

Bringing the electrical power to the system

Transit Applications

Traction substations are used to convert electrical power as supplied by the power utility (or rail operators own network) to a form suitable for providing power to a rail system (via third rail or overhead line). Depending on the type of rail system this power would be either direct current (DC) or alternating current (AC).

The traction substation core equipment for the AC side are the transformers, rectifiers and filters. Rectifiers are either 6, 12 or 24 pulse. In addition the dc traction substation will contain circuit breakers to ensure the system is adequately protected and switching devices allowing operation and maintenance of the system. For AC systems, the traction substation core equipment will be transformers which connect to the three phase power utility supply to convert this to a single phase voltage suitable for the rail electrification system being used. Alternating current supply on the traction side is single phase and can lead to imbalance on the three phase utility beyond allowable limits. Balancing devices such as transformers, static converters and phase monitors are important devices to control and monitor this. Generally traction substations will be controlled by SCADA systems and will likely provide power for auxiliary systems such as signaling and other track side purposes. Traction substations have harsher operational and stability constraints than normal power distribution substations. These include being subject to frequent short circuits, transient spikes, voltage depressions and voltage rises. The use of thyristor controlled traction drives generate significant harmonics, affecting the supply system. Given the unique issues associated with rail power, the design, construction and operation of traction substations have many technical challenges. Add into this, loading from many trains running at the same time and passing in close proximity to one another and power lines modern design is heavily dependent on high quality electrical components.

Because our products are built to the highest quality and compliance levels we guarantee our rail proven products are reliable and will last. We can confirm these statements with documentation, referrals to other agencies or muni's and MTBF data. Dynamic represents component manufacturers that contribute to better human life and machine safety in railway transportation.

  • High resistance against harsh conditions like water, ice, snow and metal dust according to EN 60310
  • Fire and Smoke protection according to EN 45545-2 and HL3
  • Shock and Vibration EN 61373
  • EMI / EMC Immunity EN 50155
  • Pollution degree PD4
