Your meter says the contactor is fine. Whether it can still break a 1,500-volt arc is a different question — and nothing on the outside will tell you.
A sealed gas-filled DC contactor does its most important job with something you cannot see. There's a pressurized inert gas around the contacts. Under normal conditions, that gas stretches, cools, and snuffs out the arc when the contacts open under load. The mechanism works. It's why these devices publish such impressive endurance numbers.
But notice what the design quietly assumes: the gas is still there.
The Part That Does the Safety Work Is the Part You Can't Inspect
Every routine check you can run on an installed contactor — continuity, coil resistance, contact voltage drop, even a full functional cycle — exercises the conduction path. None of it verifies the interruption medium. A contactor that has lost a meaningful fraction of its fill gas will close, carry rated current, and pass every test in your maintenance plan. The loss only becomes visible the first time the device is asked to break real current. By definition, that's a fault — the worst possible moment to learn the answer.
| A contactor that carries current is not the same as a contactor that can interrupt it. |
How does the gas leave without telling you?

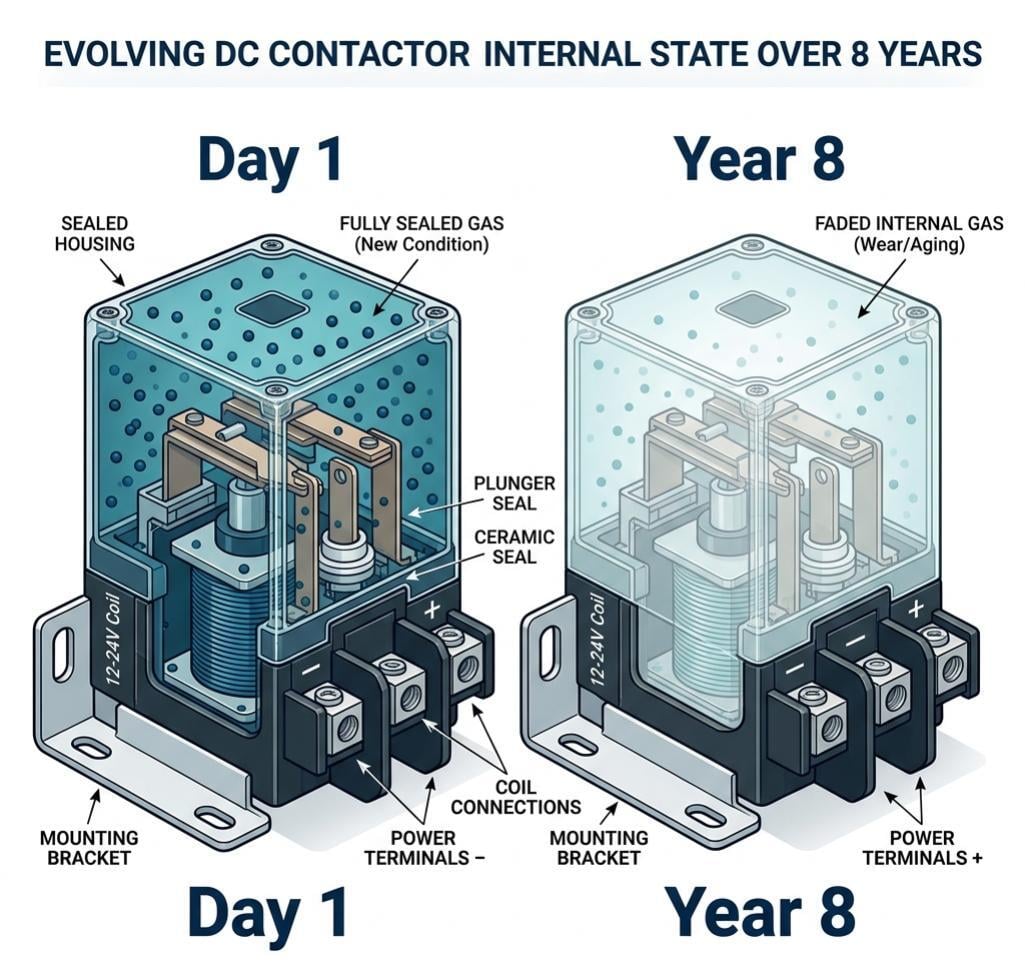

This isn't a hypothetical. Gas escape from hermetically sealed switching devices is a recognized, decades-old engineering problem — sealed-switch designs have used internal "getter" materials since the 1980s specifically to fight gradual hydrogen loss. The quiet paths:
-
Before first power-on. Shipping shock, a dropped box, stress transferred from rigid busbar connections — hairline flaws in seals or ceramic that no incoming inspection catches.
-
At installation. Over-torqued power terminals on molded bodies stress the sealing structure. The datasheet torque spec is a seal-integrity number, not just a mechanical one.
-
Over the years. Every load cycle is a thermal cycle. Expansion and contraction work marginal flaws into slow leak paths. Leak rate rises with temperature — the hotter the application, the faster the clock runs.
-
From the arcing itself. Each high-current interruption consumes a little of the fill gas ("gas cleanup"). The device's interruption capability is partly a consumable.
None of these produce a diagnostic signal. There is no pressure gauge, no leak alarm, no field test.
What's the math of the bad day?
Here's the question that reframes the datasheet: how many times, in your system's real life, will this contactor break full load current?
In most HVDC battery, solar, and traction architectures, the honest answer is a handful — the power electronics bring current to zero before the contacts open in normal operation. The contactor's load-breaking duty is concentrated in rare, high-energy events: a battery fault, an inverter failure, a loss of communication. A six-thousand cycle endurance rating describes the routine switching the device will mostly never do under load. It says nothing about whether, in year eight, the gas that survives a 1,000-amp fault interruption is still inside the chamber.
| The fine print on endurance numbers: published electrical life is typically established on low-inductance resistive test circuits, and the manufacturers themselves recommend validating life in your actual circuit. Real DC buses carry real inductance and stored inductive energy is exactly what feeds an arc. |
What does a verifiable design look like?
Open-air arc-chute contactors solve the same problem with the opposite philosophy. The arc is driven off the contacts by permanent-magnet blowout and stretched through a stack of insulating splitter plates until it can't sustain itself. Everything that performs that function is solid, mechanical, and inspectable. There is no fill gas to leak, no chamber pressure to lose, no sealed volume to rupture under an extreme event. The interruption capability you verified on day one is structurally the same capability in year fifteen. This is the architecture DC rail traction has trusted for decades, where the governing standards (IEC 61992 / EN 50123) are written around exactly this class of high-energy DC interruption.
|
Related reading: Open-Air Electromagnetic Blowout vs. Sealed Gas-Filled |
To be fair to both designs: if your application genuinely breaks load thousands of times as part of normal operation, a high-endurance sealed device is a legitimate choice and the cycle rating is the right number to study. The engineering failure isn't choosing sealed — it's choosing on a number that doesn't describe your actual event.
| Five questions to ask your contactor supplier If a sealed gas-filled device is protecting your DC bus today, these are worth an email to your supplier. |
|
|
1. At what circuit inductance was the published electrical life established and what is the rated life at our circuit's inductance? |
|
|
2. How do we verify internal gas pressure or seal integrity in the field after shipping, after terminal torque-down, after ten years of thermal cycling? |
|
|
3. If fill gas has been partially lost, does the device still meet its rated breaking capacity and how would we know? |
|
|
4. What is the containment behavior during an interruption beyond rated breaking current? Vent, rupture, or quench? |
|
|
5. What is the documented breaking capacity at fault-level current not the endurance rating at nominal current?
|
|
|
