- Relays pin-to-pin compatible with electromechanical relays.
- SLA/SLD solid state relays are 100% compatible with 5 mm wide electromechanical relays. They can be soldered directly onto PCBs or plugged into all types of DIN rail standard bases. These relays can switch all types of loads and they can withstand significant current surges from loads in electro valves, motors, contactor coils, LEDs, etc. The switching power for SLA relays is 2A/280VAC and 2.5A/60VDC or 4A/24VDC for SLD relays.
- SP/ST solid state relays: AC and DC range from 1 to 5A, with built-in protection (VDR or Transil), available in heights of 15.7 mm (ST Series) and 25.4 mm (SP Series).
SLA03220
Max. switching current (A): 2A
Max. switching voltage: 12-280VAC
Control voltage: 18-32VDC

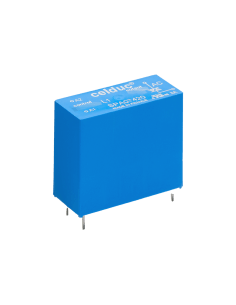

SPA01420
Max. switching current (A): 4A
Max. switching voltage: 12-275VAC
Control voltage: 4-16VDC
STA07220
Max. switching current (A): 2A
Max. switching voltage: 12-275VAC
Control voltage: 12-30VAC/DC
Power SSR for PCB.
SK541101
Max. switching current (A): 2.5A
Max. switching voltage: 24-280VAC
Control voltage: 3-30VDC

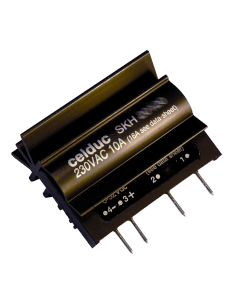

SKH10120
Max. switching current (A): 10A
Max. switching voltage: 12-280VAC
Control voltage: 8-32VDC
SKL10120
Max. switching current (A): 16A
Max. switching voltage: 12-280VAC
Control voltage: 4-14VDC
-
Interface relays to control loads such as resistors, LEDS, electrovalves, transformers and power contactor coils.
-
They can also be supplied as dedicated motor control variants with 2 and 3-phase switching and motor rotation reversal.
-
They are DIN-rail mounted and fitted with LEDs.
XKA20420
Max. switching current (A): 5A
Max. switching voltage: 12-275VAC
Control voltage: 6-30VDC
XKH20120
Max. switching current (A): 10A
Max. switching voltage: 12-280VAC
Control voltage: 10-32VDC
XKLD0020
Max. switching current (A): 4A
Max. switching voltage: 48VAC
Control voltage: 18-32VDC
Input/Output Modules
SEA24020
Max. switching current (A): 1A
Max. switching voltage: 18-32 VDC
Control voltage: 180-280VAC
SSA05320
Max. switching current (A): 3A
Max. switching voltage: 12-280VAC
Control voltage: 3-8VDC
SSC05306
Max. switching current (A): 3A
Max. switching voltage: 3-60VDC
Control voltage: 3-8VDC
Miniature relays available with “FASTON” or PCB terminals.
SF541310
Max. switching current (A): 12A
Max. switching voltage: 12-280VAC
Control voltage: 4-30VDC
SF542310
Max. switching current (A): 12A
Max. switching voltage: 12-280VAC
Control voltage: 4-30VDC
SP752120
Max. switching current (A): 12A
Max. switching voltage: 12-280VAC
Control voltage: 3-32VDC
SSR with "Faston" terminals
These relays are designed to control resistive loads.
SCF42160
Max. switching current (A): 20A
Max. switching voltage: 12-280VAC
Control voltage: 4-30VDC
SCF42324
Max. switching current (A): 20A
Max. switching voltage: 12-280VAC
Control voltage: 12-30VDC
SCF62160
Max. switching current (A): 20A
Max. switching voltage: 24-600VAC
Control voltage: 5-30VDC
