SW-104: Industrial Embeddable 4 Port Ethernet Switch
| Operating temperature | -40 °C to +80 °C / -40 °F to +176 °F |
| Storage Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
| Form Factor | Embedded |
| Power Consumption | 1.1 Watts Max: 220 mA@+5VDC / 36mA@+30VDC |
| Product Weight | 0.115 kg, 4.06 ounces |
| Product Dimensions | 99x94x23 mm, 3.9x3.7x0.9 inches |
| Packaged Weight | 0.082 kg, 2.89 ounces |
| Packaged Dimensions | 160x135x49 mm, 6.3x5.3x1.9 inches |
SW-105: Industrial Embeddable 5 Port Ethernet Switch
| Operating temperature | -40 °C to +80 °C / -40 °F to +176 °F |
| Storage Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
| Form Factor | Embedded |
| Power Consumption | 1.35 Watts Max: 260 mAmps@+5VDC/45mAmps@+30VDC |
| Product Weight | 0.068 kg, 2.39 ounces |
| Product Dimensions | 99x94x23 mm, 3.9x3.7x0.9 inches |
| Packaged Weight | 0.088 kg, 3.10 ounces |
| Packaged Dimensions | 160x135x49 mm, 6.3x5.3x1.9 inches |
SW-108: Industrial Embeddable 8 Port Ethernet Switch
| Operating temperature | -40 °C to +80 °C / -40 °F to +176 °F |
| Storage Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
| Form Factor | Embedded |
| Power Consumption | 1.5 Watts Max: 300 mAmps@+5VDC/50mAmps@+30VDC |
| Product Weight | 0.115 kg, 4.06 ounces |
| Product Dimensions | 99x94x23 mm, 3.9x3.7x0.9 inches |
| Packaged Weight | 0.110 kg, 3.88 ounces |
| Packaged Dimensions | 160x135x49 mm, 6.3x5.3x1.9 inches |
SW-005: 5 Port Unmanaged Ethernet Switch Wall Mountable
| Operating temperature | -10 °C to +60 °C / 14 °F to +140 °F |
| Storage Temperature | -10 °C to +70 °C / +14 °F to +158 °F |
| Form Factor | Wall Mounted |
| Power Consumption | 1.1 Watts Max: 220 mAmps@+5VDC/36mAmps@+30VDC |
| Product Weight | 0.134 kg, 4.73 ounces |
| Product Dimensions | 107x102x28 mm, 4.2x4.0x1.1 inches |
| Packaged Weight | 0.212 kg, 7.48 ounces |
| Packaged Dimensions | 160x135x49 mm, 6.3x5.3x1.9 inches |
SW-008: 8 Port Unmanaged Ethernet Switch Wall Mountable
| Operating temperature | -10 °C to +60 °C / 14 °F to +140 °F |
| Storage Temperature | -10 °C to +70 °C / +14 °F to +158 °F |
| Form Factor | Wall Mounted |
| Power Consumption | 1.1 Watts Max: 220 mAmps@+5VDC/36mAmps@+30VDC |
| Product Weight | 0.142 kg, 5.01 ounces |
| Product Dimensions | 110x100x30 mm, 4.3x3.9x1.2 inches |
| Packaged Weight | 0.226 kg, 7.97 ounces |
| Packaged Dimensions | 160x135x49 mm, 6.3x5.3x1.9 inches |
SW-504: Industrial Ethernet 4 Port Switch DIN Rail Mountable
| Operating temperature | -40 °C to +80 °C / -40 °F to +176 °F |
| Storage Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
| Form Factor | Din rail mounted |
| Power Consumption | 1.1 Watts Max: 220 mA@+5VDC / 36mA@+30VDC |
| Product Weight | 0.125 kg, 4.41 ounces |
| Product Dimensions | 118x100x23 mm, 4.6x3.9x0.9 inches |
| Packaged Weight | 0.199 kg, 7.02 ounces |
| Packaged Dimensions | 160x135x49 mm, 6.3x5.3x1.9 inches |
SW-505: Industrial Compact Ethernet 5 Port Switch DIN Rail Mountable
| Operating temperature | -40 °C to +80 °C / -40 °F to +176 °F |
| Storage Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
| Form Factor | Din rail mounted |
| Power Consumption | 1.35 Watts Max: 260 mAmps@+5VDC/45mAmps@+30VDC |
| Product Weight | 0.115 kg, 4.06 ounces |
| Product Dimensions | 99x94x23 mm, 3.9x3.7x0.9 inches |
| Packaged Weight | 0.199 kg, 7.02 ounces |
| Packaged Dimensions | 160x135x49 mm, 6.3x5.3x1.9 inches |
SW-508: Industrial Ethernet 8 Port Switch DIN Rail Mountable
| Operating temperature | -40 °C to +80 °C / -40 °F to +176 °F |
| Storage Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
| Form Factor | Din rail mounted |
| Power Consumption | 1.5 Watts Max: 300 mAmps@+5VDC/50mAmps@+30VDC |
| Product Weight | 0.160 kg, 5.64 ounces |
| Product Dimensions | 115x99x45 mm, 4.5x3.9x1.8 inches |
| Packaged Weight | 0.244 kg, 8.61 ounces |
| Packaged Dimensions | 160x135x49 mm, 6.3x5.3x1.9 inches |
SW-7016: Hardened Industrial 16x 10/100 Ethernet Switch
- Enhanced connectivity and flexibility: Higher port count enables flexible network layout and device placement
- Integrated DIN-rail mount with grounding - includes MK-103 DIN Rail clip for mounting options: 2 different heights and 180° rotation
- Wide voltage input range (+5V to +30VDC) and dual redundant power inputs - ensures reliability and reduces the risk of power outages
- Industrial hardened enclosure and wide operating temperature range (-40°C to +80°C /-40°F to +176°F) - reliable operation in harsh environments
SW-705: Industrial Hardened Ethernet 5 Port Switch DIN Rail Mountable
| Operating temperature | -40 °C to +80 °C / -40 °F to +176 °F |
| Storage Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
| Form Factor | Hardened Din rail mounted |
| Power Consumption | 1.35 Watts Max : 260 mAmps@+5VDC/45mAmps@+30VDC |
| Product Weight | 0.270 kg, 9.52 ounces |
| Product Dimensions | 99x95x29 mm, 3.9x3.7x1.1 inches |
| Packaged Weight | 0.338 kg, 11.92 ounces |
| Packaged Dimensions | 160x135x49 mm, 6.3x5.3x1.9 inches |
SW-708:Hardened Industrial Ethernet 8 Port Switch DIN Rail Mountable
| Operating temperature | -40 °C to +80 °C / -40 °F to +176 °F |
| Storage Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
| Form Factor | Hardened Din rail mounted |
| Power Consumption | 1.5 Watts Max: 300 mAmps@+5VDC/50mAmps@+30VDC |
| Product Weight | 0.393 kg, 13.86 ounces |
| Product Dimensions | 120x100x40 mm, 4.7x3.9x1.6 inches |
| Packaged Weight | 0.443 kg, 15.63 ounces |
| Packaged Dimensions | 160x135x49 mm, 6.3x5.3x1.9 inches |
SW-7416:Hardened Industrial 14x 10/100 & 2x 1G Ethernet Switch
- Enhanced connectivity and flexibility: Higher port count enables flexible network layout and device placement
- High-speed Gigabit connectivity ensuring smooth and efficient data transfer for industrial automation applications
- Integrated DIN-rail mount with grounding - includes MK-103 DIN Rail clip for mounting options: 2 different heights and 180° rotation
- Wide voltage input range (+5V to +30VDC) and dual redundant power inputs - ensures reliability and reduces the risk of power outages
- Industrial hardened enclosure and wide operating temperature range (-40°C to +80°C /-40°F to +176°F) - reliable operation in harsh environments

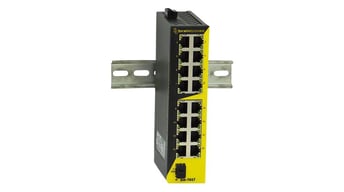

SW-7617:Hardened Industrial 16x 10/100 & 1x SFP Ethernet Switch
- Enhanced connectivity and flexibility: Higher port count enables flexible network layout and device placement
- SFP uplink supports fibre optic connectivity
- SFP Port Power Overcurrent protection: ensures compatibility with existing fibre optic infrastructure for seamless integration
- Integrated DIN-rail mount with grounding - includes MK-103 DIN Rail clip for mounting options: 2 different heights and 180° rotation
- Wide voltage input range (+5V to +30VDC) and dual redundant power inputs - ensures reliability and reduces the risk of power outages
- Industrial hardened enclosure and wide operating temperature range (-40°C to +80°C /-40°F to +176°F) - reliable operation in harsh environment

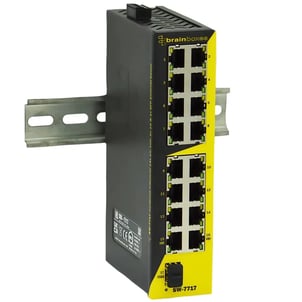

SW-7717: Hardened Industrial 14x 10/100, 2x 1G & 1x SFP Ethernet Switch
- Enhanced connectivity and flexibility: Higher port count enables flexible network layout and device placement
- High-speed Gigabit Ethernet ports to ensure fast and reliable data transfer
- SFP uplink supports fibre optic connectivity
- SFP Port Power Overcurrent protection: ensures compatibility with existing fibre optic infrastructure for seamless integration
- Integrated DIN-rail mount with grounding - includes MK-103 DIN Rail clip for mounting options: 2 different heights and 180° rotation
- Wide voltage input range (+5V to +30VDC) and dual redundant power inputs - ensures reliability and reduces the risk of power outages
- Industrial hardened enclosure and wide operating temperature range (-40°C to +80°C /-40°F to +176°F) - reliable operation in harsh environment
