Brainboxes Unique Products

A catalog lists part numbers. This shows what's actually worth specifying.

We don't represent commodity parts. We carry full stack manufacturers, the product lines where the R&D, engineering, manufacturing, and support are controlled in-house. This “whole stack” makes a device genuinely hard to replace with something off a distributor shelf. Here's a peek at three Brainboxes devices we think are worth your attention, and why.

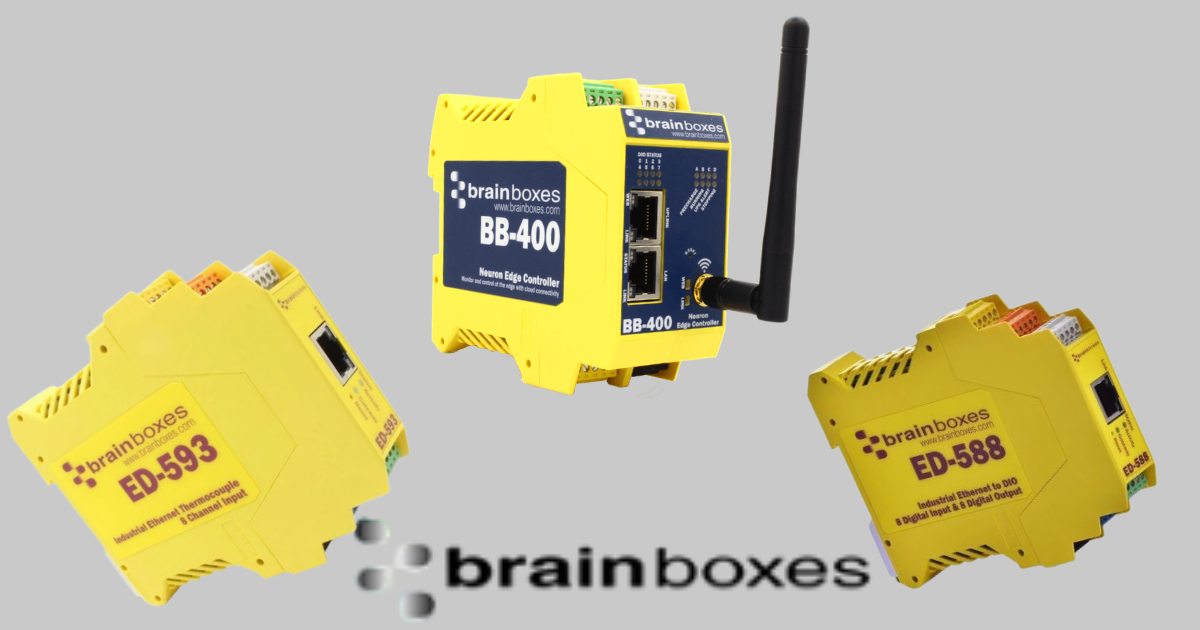

For Brainboxes, three devices stand out. Here's the engineering case for each: what it is, why it matters to a machine builder, and how it differs from the commodity alternative

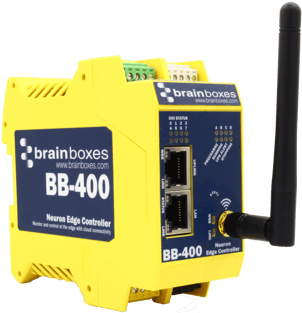

BB-400 NeuronEdge

Industrial Edge Controller · Data / Network

Industrial PC + PLC + protocol gateway — one DIN-mount unit
A DIN-rail edge controller built around an industrialized Raspberry Pi Compute Module plus an on-board Arduino for real-time I/O. Programmable in Python, C#, or visually in Node-RED, with Docker container support out of the box.

Why it matters
Adds edge data processing, OPC UA / MQTT publishing, and custom logic without specifying a separate IPC, gateway, and PLC. The built-in UPS handles dirty power with no external module.
How it differs
A commercial Pi has no industrial enclosure, no isolated I/O, no UPS, no real-time co-processor, no temp rating, no warranty. This solves all of it in one SKU.

ED-588

Ethernet Remote I/O + Serial Gateway · Data / Network

Ethernet to 8 DI + 8 DO + configurable RS485 serial gateway
A compact DIN rail remote I/O module with 8 digital inputs, 8 protected digital outputs, and a configurable RS485 half duplex serial gateway port. ASCII or Modbus TCP, with a watchdog timer and event monitoring.

Why it matters
The serial gateway is the unusual part. One device replaces a remote I/O block and a serial-to-Ethernet bridge, decisive when bringing legacy RS485 instruments into a new SCADA layer. Event monitoring triggers on input change instead of polling.
How it differs
Generic remote I/O is I/O only: no serial bridge, no watchdog, no event triggers. Otherwise you're buying two devices and writing more PLC code.

ED-593

Ethernet Thermocouple Remote I/O · Data / Network

Ethernet to 8 channel thermocouple module
An industrial Ethernet module with 8 thermocouple inputs, each individually configurable for sensor type (all common types supported), with open/short circuit detection, browser-based monitoring, and Modbus TCP / ASCII protocols.

Why it matters
Solves temperature sensing at the network edge instead of cabling thermocouples back to a central PLC. Ideal for multizone ovens, batch reactors, EV battery test, and food/pharma where many temperature points need to land on the network with minimal wiring.
How it differs
Off the shelf transmitters handle one or two channels each. Getting 8 TC inputs onto Ethernet the commodity way means stacking single channel transmitters in a separate cabinet.

Get the design right before the order goes in.

The hardware is only half the decision

Knowing these devices exist is one thing. Knowing when one of them collapses three-line items on your BOM into one; that's the part we help with, before anything gets quoted or ordered.

We're the local engineering front-end for these lines. We help you architect it, spec the right device, and de-risk the design; then your order is placed through Brainboxes' authorized distribution like always. Same channel, same buying process. We just make sure what lands in it is the right design.

Architecture guidance, not just part numbers.
Industry-specific application support, we've seen where these fit and where they don't.
We get in before the design freezes, when changing a part still costs nothing.
Local, engineer-to-engineer support that complements your distributor, not replaces it.
