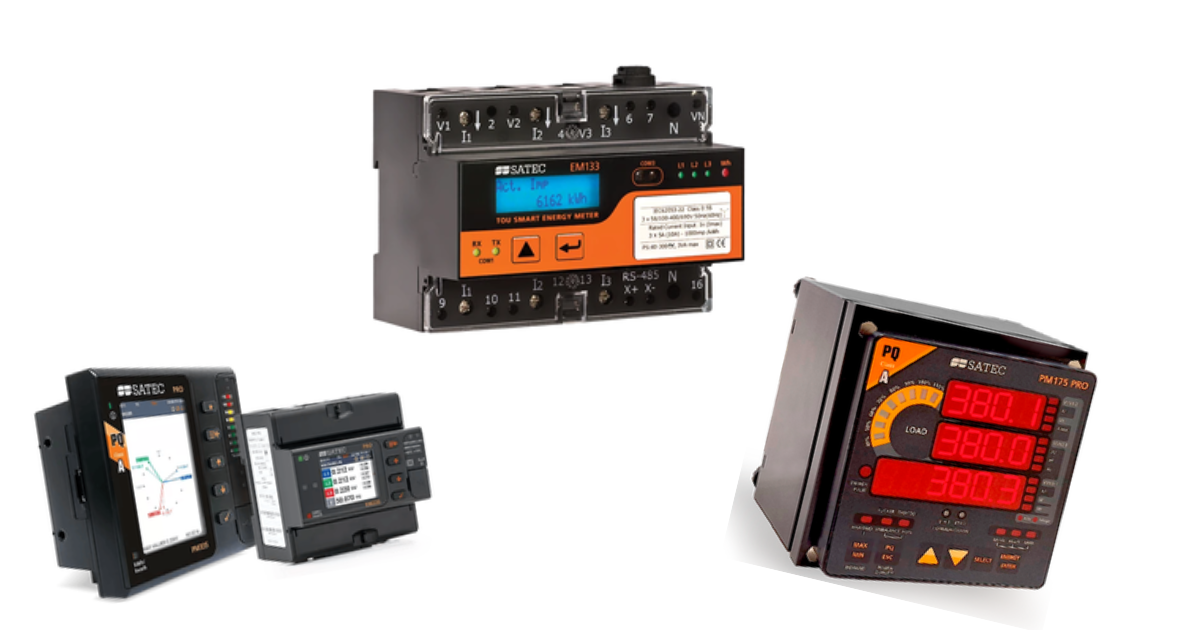

The SATEC Products That Earn Their Panel Space
Every meter vendor publishes accuracy classes and protocol lists. This page is the shorter list: the SATEC instruments that do something structurally different, and the detail on each that a datasheet comparison will not surface.
Three boxes in one instrument.
A Class 0.2S revenue meter, a Class A Edition 3.1 power quality analyzer, and an edge controller with 64 programmable control setpoints, in one device. Dual independent Ethernet ports, 16 GB of onboard memory, IEC 61850 Ed. 2 with GOOSE, waveform capture, EN 50160 and IEEE 519 reporting.
A Class 0.2S revenue meter, a Class A Edition 3.1 power quality analyzer, and an edge controller with 64 programmable control setpoints, in one device. Dual independent Ethernet ports, 16 GB of onboard memory, IEC 61850 Ed. 2 with GOOSE, waveform capture, EN 50160 and IEEE 519 reporting.
What the datasheet will not tell you: the same instrument also meters DC. Add U-HACS sensors and the VRM module and the PRO Series does revenue-grade DC measurement to 1,500V DC, so a facility with both AC distribution and a DC bus (solar, BESS, EV charging) runs one platform and one software layer instead of two vendors.
A current-generation analyzer that drops into last decade's cutout.
Class A Edition 3.1 power quality, IEC 61850 Ed. 2, harmonics to the 63rd, and time sync to 1 microsecond via IRIG-B or PTP, in the same form factor and wiring as the PM17x units already installed in the field.
Class A Edition 3.1 power quality, IEC 61850 Ed. 2, harmonics to the 63rd, and time sync to 1 microsecond via IRIG-B or PTP, in the same form factor and wiring as the PM17x units already installed in the field.
What the datasheet will not tell you: the upgrade math. If a facility standardized on PM17x years ago, moving to current Class A compliance is a device swap, not a panel redesign and not a SCADA rework. That is usually the difference between an upgrade that happens and one that stays on the someday list.
DC Metering (PRO Series + U-HACS + VRM)
Revenue-grade DC, which almost nobody else does.
Direct DC metering from 20 to 1,500V DC, current sensors to 2,500A DC, bidirectional energy calculation, with independently certified accuracy (IEC 62053-41, NMi). Built for BESS, EV fast charging, PV central inverters, and industrial DC distribution.
Direct DC metering from 20 to 1,500V DC, current sensors to 2,500A DC, bidirectional energy calculation, with independently certified accuracy (IEC 62053-41, NMi). Built for BESS, EV fast charging, PV central inverters, and industrial DC distribution.
What the datasheet will not tell you: most utility-grade metering lines stop at AC. When a grid-services battery or a charging site needs settlement-quality numbers on the DC side, the vendor list gets very short, and the ones that exist are usually a separate platform from your AC metering. SATEC's DC metering is the same PRO Series instrument and the same software.
Fifty-four circuits, one device.
Up to 54 single-phase or 18 three-phase circuits monitored from a single modular unit, with per-circuit harmonics to the 25th, time-of-use registers, and SCADA-ready protocols (DNP3, IEC 60870, BACnet). Measures against two independent voltage sources, so a panel fed by both a transformer and a parallel PV installation reads correctly.
Up to 54 single-phase or 18 three-phase circuits monitored from a single modular unit, with per-circuit harmonics to the 25th, time-of-use registers, and SCADA-ready protocols (DNP3, IEC 60870, BACnet). Measures against two independent voltage sources, so a panel fed by both a transformer and a parallel PV installation reads correctly.
What the datasheet will not tell you: it is also a fault recorder. The DFR variant captures waveforms and records fault currents to 40 times nominal across the monitored feeders, which means the panel that does your sub metering is also the witness when a breaker event needs explaining. (First-generation BFM136, 36 single-phase or 12 three-phase circuits, UL Listed for US and Canada, remains available as the value option.)
The interconnect meter that is already on the list.
ANSI socket form factor, Class 0.2S revenue accuracy, Class A power quality analysis, and a place on CAISO's authorized revenue meter list for Metered Entity applications.
ANSI socket form factor, Class 0.2S revenue accuracy, Class A power quality analysis, and a place on CAISO's authorized revenue meter list for Metered Entity applications.
What the datasheet will not tell you: at a CAISO settlement point you do not get to pick from the whole market. The authorized list is a handful of vendors, SATEC is one of them, and approval is configuration-specific. We verify the exact configuration against the requirement at quote time, before it becomes a commissioning surprise.
HACS High Accuracy Current Sensors
The reason the accuracy class survives.
Current sensors from 10A to 3,000A that act as the primary CT with a milliamp output direct to the meter. Solid-core accuracy 0.1 percent. Cable runs to 650 feet. An internal protection circuit means no shorting blocks at disconnect.
Current sensors from 10A to 3,000A that act as the primary CT with a milliamp output direct to the meter. Solid-core accuracy 0.1 percent. Cable runs to 650 feet. An internal protection circuit means no shorting blocks at disconnect.
What the datasheet will not tell you: this is where most metering accuracy quietly dies. A precision meter behind an ordinary external CT inherits the CT's error, and the installed system never performs to the number on the meter datasheet. One CT in the chain instead of two is the whole point.
